PM20 SERIES | BASE MOUNT

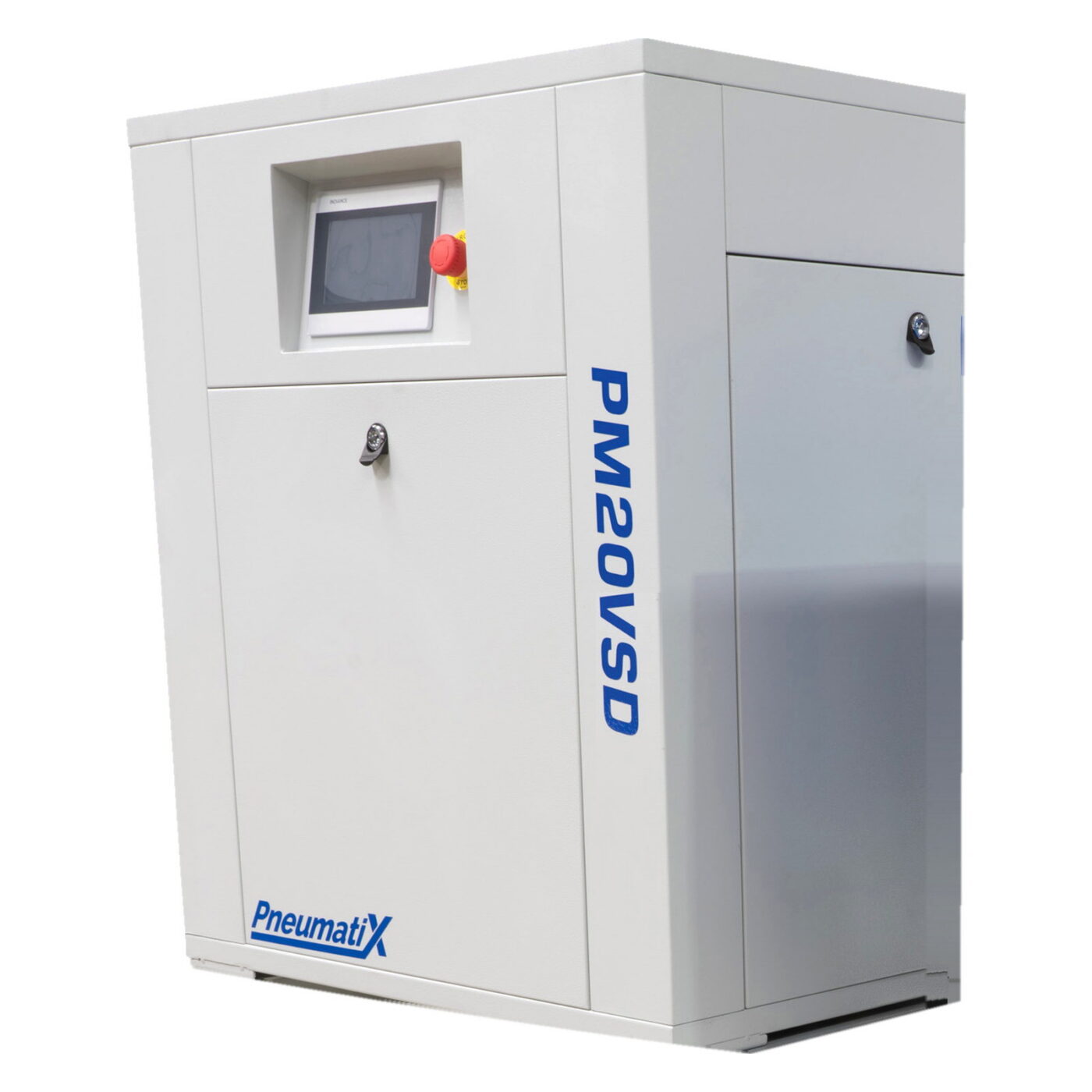

PM20 Base Mount
Technical model PM20VSD
PM20 compressor performance in a compressor-only Base Mount delivering 2,100 L/min at 8 bar for a separately designed compressed-air system.
Recommended Retail Price
$7,799 inc GST, excludes delivery
Available through Pneumatix dealer and distribution partners. Supplier pricing and availability may vary.
Core specifications
- Motor power
- 15 kW / 20 HP
- FAD at 8 bar
- 2,100 L/min (74 CFM) at 8 bar
- Maximum pressure
- 10 bar / 145 PSI
- Configuration
- Base Mount
Product overview
The PM20 Base Mount uses the same applicable PM20 compressor-core output as the PM20 Total Air Station without the integrated 500 L receiver-mounted package.
It is intended for higher-demand systems where receiver storage, drying, filtration and equipment position need to be designed around the site.
Why choose this model
- PM20 output in a flexible Base Mount format
- independently size the receiver
- independently specify air treatment
- suit a larger plant-room arrangement
- allow for future system changes
The PM20 Total Air Station is the same compressor supplied with a 500 litre receiver, PMD2400 refrigerated dryer and inline filtration. The comparison table sets the two side by side, and the compressor sizing guide covers the demand calculation.
Included and not included
Included as standard
- PM20 variable-speed rotary screw compressor
- Digital compressor controller
Not included as standard
- air receiver
- refrigerated air dryer
- inline filtration
- distribution pipework
Key technical data
Only verified values are published. Where a specification is still being confirmed, the row is omitted rather than estimated.
| Technical model | PM20VSD |
|---|---|
| Configuration | Base Mount |
| Motor power (kW) | 15 kW |
| Motor power (HP) | 20 HP |
| Free air delivery | 2,100 L/min (74 CFM) at 8 bar |
| Maximum operating pressure | 10 bar / 145 PSI |
| Electrical supply | 3-phase / 415 V |
| Speed range | 1,440-3,600 RPM |
| Outlet size | 3/4 inch |
| Noise level | 65 dB(A) |
| IP rating | IP23 |
| Air receiver | Not included |
| Refrigerated dryer | Not included |
| Inline filtration | Not included |
| Air/oil separator volume | 11 L |
| Separator design standard | AS 1210-2010 |
| Separator hazard level | D |
| Separator registration | WSV-0150587050 |
Best suited to
- A suitable receiver is already installed
- A different receiver capacity is required
- Air treatment must be independently specified
- The compressor is part of a larger plant-room arrangement
- The site needs flexibility for future system changes
Installation planning
The final system should account for receiver storage, dryer correction factors, filter pressure drop, condensate drainage, ventilation, service access and available electrical capacity.
Serviceability and support
Service and warranty work is performed through approved service providers. Spare parts are available through approved service providers and the Pneumatix dealer network.
Plan the rest of the system
Product FAQ
What is included with the PM20 Base Mount?
The compressor package only. Receiver, dryer and filtration are selected separately.
What core output is used?
2,100 L/min at 8 bar from the PM20 compressor core.
Next steps
If the PM20 output level is appropriate but the integrated 500 L package is not required, the PM20 Base Mount provides the same applicable core output in a more flexible system format.
