20 years compressed-air experience
Selected Pneumatix compressors operating in the field since 2022
8,000+ operating hours recorded on selected machines
Warranty and service through approved service providers
Rated to 10 bar maximum working pressure
Why consider Pneumatix?
Focused range
PM10, PM20 and PM30 output levels without dozens of overlapping models.
Practical field experience
Product decisions shaped by 20 years of compressed-air experience and assessment at the Pneumatix R&D Experience Centre in Australia.
Serviceability-focused construction
Major packaged sections can be replaced as assemblies where applicable, helping suitably qualified technicians complete major work more practically.
Clear support pathway
Supply through dealer and distribution partners, with service through approved service providers and product-selection help where needed.
Five configurations across three output levels
Every Pneumatix compressor is rated to a maximum working pressure of 10 bar (145 PSI). We publish airflow at 8 bar because 8 bar is the fair comparison point, and plenty of machines cannot reach 10 bar at all. Compare the range below by motor power, free-air delivery and configuration.
Total Air Station
PM10 Total Air Station
PM10300VSD
- 1,000 L/min at 8 bar
- 10 bar max pressure
- 7.5 kW / 10 HP
- 300 L receiver
- 1.0 micron pre-filter
- 0.01 micron post-filter
Total Air Station
PM20 Total Air Station
PM20500VSD
- 2,100 L/min at 8 bar
- 10 bar max pressure
- 15 kW / 20 HP
- 500 L receiver
- 1.0 micron pre-filter
- 0.01 micron post-filter
Base Mount
PM10 Base Mount
PM10VSD
- 1,000 L/min at 8 bar
- 10 bar max pressure
- 7.5 kW / 10 HP
- Compressor only
Total Air Station or Base Mount?
Total Air Station
A packaged receiver-mounted solution for customers who want the compressor, air storage, refrigerated drying and filtration brought together in one compact arrangement. Available in PM10 and PM20.
Base Mount
A compressor-only configuration for systems where the receiver, dryer and filtration are selected separately to suit the installation. Available in PM10, PM20 and PM30.
Compare the range
| Product | Model | Configuration | Motor power | FAD at 8 bar | Max pressure | Receiver | Dryer | Pre-filter | Post-filter | 3Ø Circuit Breaker |
|---|---|---|---|---|---|---|---|---|---|---|
| PM10 Base Mount | PM10VSD | Base Mount | 7.5 kW / 10 HP | 1,000 L/min (35 CFM) at 8 bar | 10 bar / 145 PSI | – | – | – | – | D20 |
| PM10 Total Air Station | PM10300VSD | Total Air Station | 7.5 kW / 10 HP | 1,000 L/min (35 CFM) at 8 bar | 10 bar / 145 PSI | 300 litres | 1,200 L/min | 1.0 micron | 0.01 micron | D20 |
| PM20 Base Mount | PM20VSD | Base Mount | 15 kW / 20 HP | 2,100 L/min (74 CFM) at 8 bar | 10 bar / 145 PSI | – | – | – | – | D32 |
| PM20 Total Air Station | PM20500VSD | Total Air Station | 15 kW / 20 HP | 2,100 L/min (74 CFM) at 8 bar | 10 bar / 145 PSI | 500 litres | 2,400 L/min | 1.0 micron | 0.01 micron | D32 |
| PM30 Base Mount | PM30VSD | Base Mount | 22 kW / 30 HP | 3,200 L/min (113 CFM) at 8 bar | 10 bar / 145 PSI | – | – | – | – | D50 |
PM10 Base Mount
- Model
- PM10VSD
- Configuration
- Base Mount
- Motor power
- 7.5 kW / 10 HP
- FAD at 8 bar
- 1,000 L/min (35 CFM) at 8 bar
- Max pressure
- 10 bar / 145 PSI
- Receiver
- –
- Dryer
- –
- Pre-filter
- –
- Post-filter
- –
- 3Ø Circuit Breaker
- D20
- Best suited to
- The site already has a suitable receiver, A larger or separately positioned receiver is preferred, Dryer and filtration requirements need to be selected independently, The compressor is being installed as part of a planned plant-room system, The site may expand its storage or air-treatment system later
PM10 Total Air Station
- Model
- PM10300VSD
- Configuration
- Total Air Station
- Motor power
- 7.5 kW / 10 HP
- FAD at 8 bar
- 1,000 L/min (35 CFM) at 8 bar
- Max pressure
- 10 bar / 145 PSI
- Receiver
- 300 litres
- Dryer
- 1,200 L/min
- Pre-filter
- 1.0 micron
- Post-filter
- 0.01 micron
- 3Ø Circuit Breaker
- D20
- Best suited to
- mechanical workshops with verified demand within the PM10 output level, tyre and service facilities, smaller fabrication applications, sites where an integrated package suits the available space

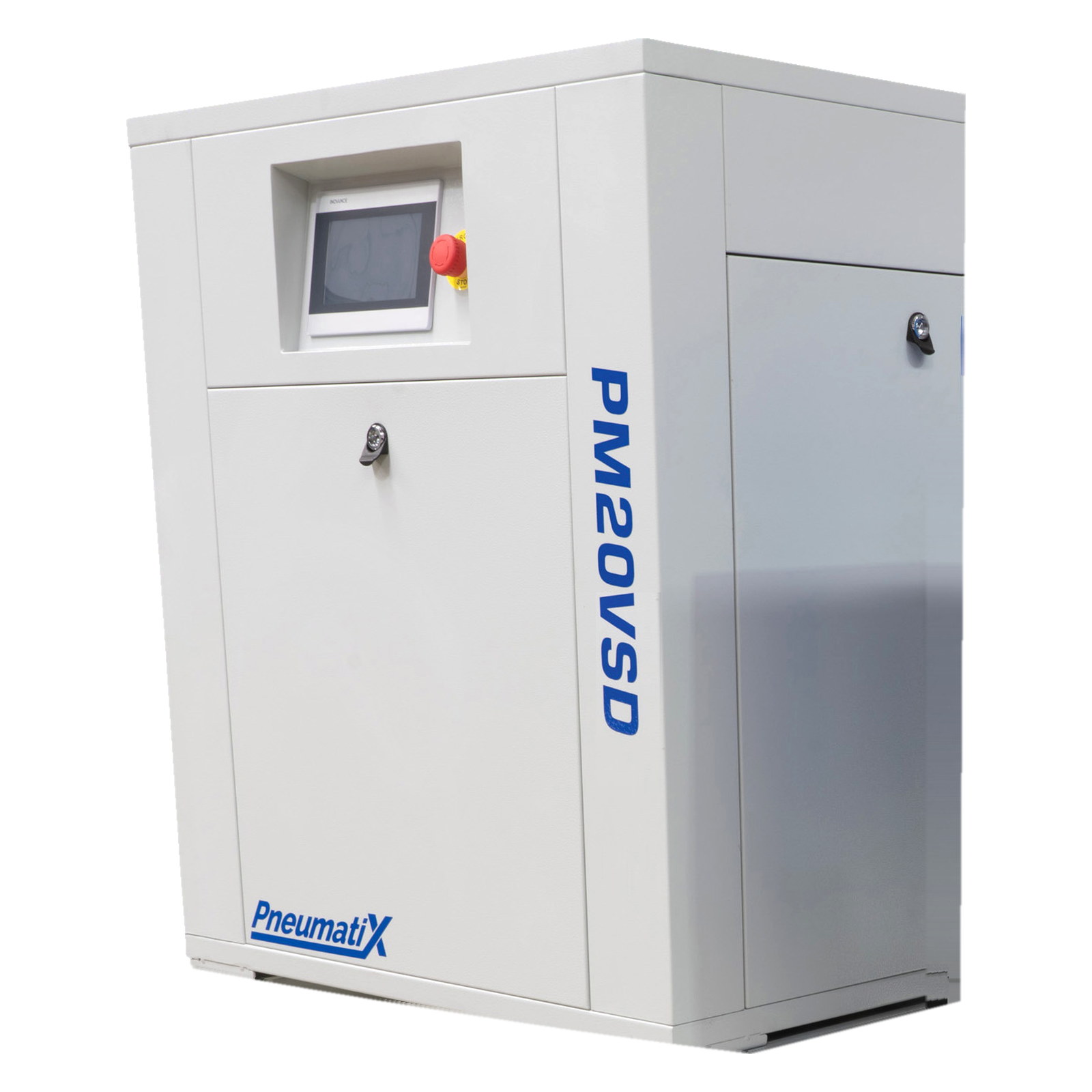

PM20 Base Mount
- Model
- PM20VSD
- Configuration
- Base Mount
- Motor power
- 15 kW / 20 HP
- FAD at 8 bar
- 2,100 L/min (74 CFM) at 8 bar
- Max pressure
- 10 bar / 145 PSI
- Receiver
- –
- Dryer
- –
- Pre-filter
- –
- Post-filter
- –
- 3Ø Circuit Breaker
- D32
- Best suited to
- A suitable receiver is already installed, A different receiver capacity is required, Air treatment must be independently specified, The compressor is part of a larger plant-room arrangement, The site needs flexibility for future system changes
PM20 Total Air Station
- Model
- PM20500VSD
- Configuration
- Total Air Station
- Motor power
- 15 kW / 20 HP
- FAD at 8 bar
- 2,100 L/min (74 CFM) at 8 bar
- Max pressure
- 10 bar / 145 PSI
- Receiver
- 500 litres
- Dryer
- 2,400 L/min
- Pre-filter
- 1.0 micron
- Post-filter
- 0.01 micron
- 3Ø Circuit Breaker
- D32
- Best suited to
- larger mechanical workshops, tyre and service facilities with multiple users, fabrication and engineering sites, CNC and manufacturing environments, other sites with greater simultaneous demand

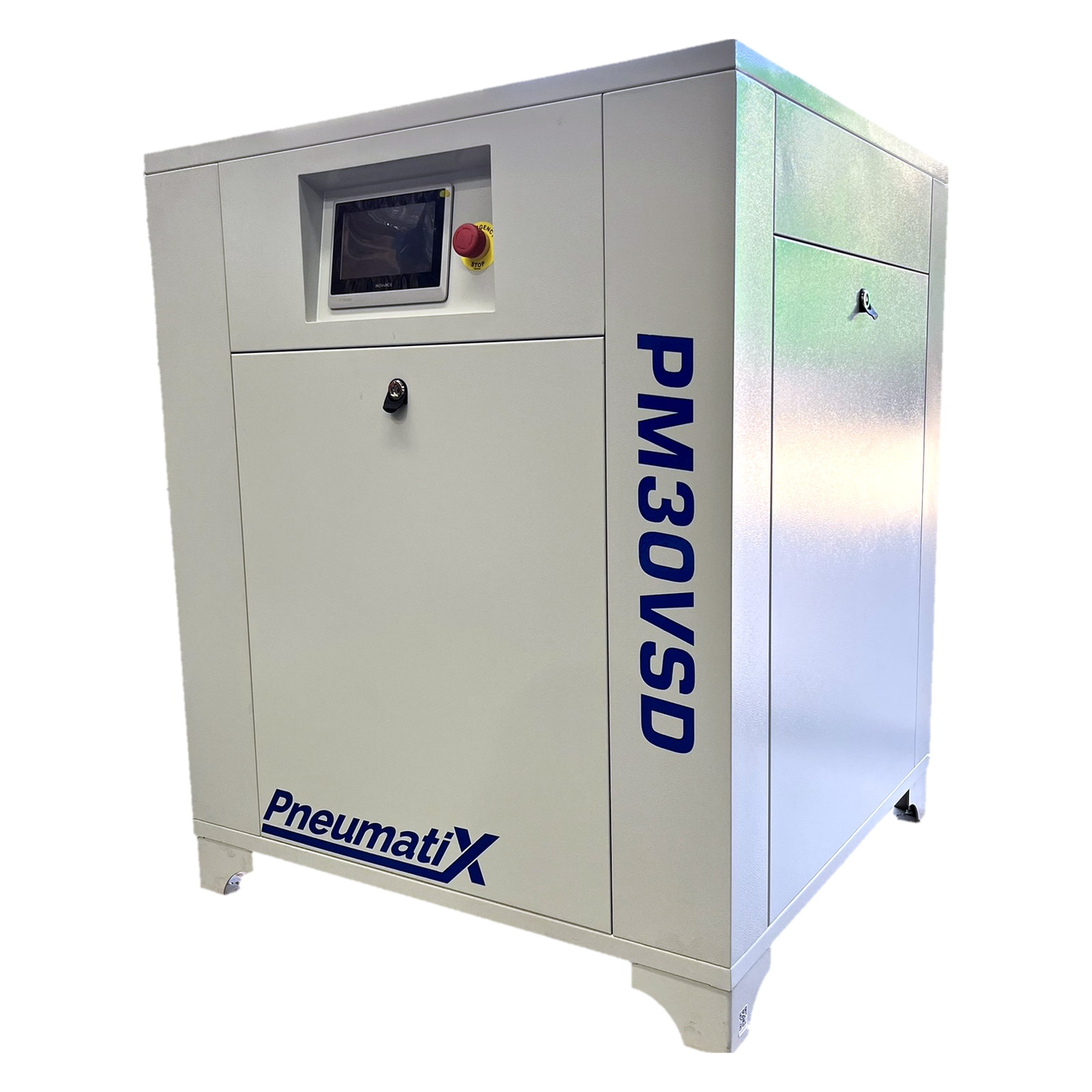

PM30 Base Mount
- Model
- PM30VSD
- Configuration
- Base Mount
- Motor power
- 22 kW / 30 HP
- FAD at 8 bar
- 3,200 L/min (113 CFM) at 8 bar
- Max pressure
- 10 bar / 145 PSI
- Receiver
- –
- Dryer
- –
- Pre-filter
- –
- Post-filter
- –
- 3Ø Circuit Breaker
- D50
- Best suited to
- Larger automotive facilities, Fabrication and engineering sites, CNC and manufacturing environments, Other industrial processes with sustained or simultaneous air demand
A dash means that item is not supplied with that configuration. A Base Mount is the same compressor on rubber feet, supplied without receiver, dryer or filtration. Dryers hold a 2-10 °C pressure dew point on R134a refrigerant, and the air treatment is rated above the compressor it serves.
Why the 10 bar rating matters. Flow is quoted at 8 bar so it compares directly against machines that do not reach 10 bar. The extra pressure is not a number on a sheet: the variable-speed controller can be programmed to cut in and out at the pressure points you choose, so the system can be set to hold above 8 bar and still have headroom when demand peaks. A machine rated to 8 bar has nothing left above 8 bar to give.
Breaker sizes are our recommendation for the three-phase compressor supply. A Total Air Station also needs a 10 A general purpose outlet for its dryer. The final circuit design is the installing electrician’s under AS/NZS 3000.
Refrigerated air dryers
Moisture is a normal part of compressed air. Pneumatix refrigerated air dryers provide a practical drying stage for workshop and industrial systems where drier compressed air is required.
For Base Mount installations, the dryer can be selected separately to suit the compressor flow and system requirements. Total Air Stations already incorporate refrigerated drying as part of the packaged arrangement.
Parts, filtration and ongoing support
Pneumatix supports compressed-air systems with inline filtration, replacement filter elements, spare parts and service pathways through approved service providers and the dealer network.
Inline filtration can be selected as part of a complete compressed-air treatment arrangement, while replacement elements and service parts support ongoing maintenance.
Pneumatix in working environments
See verified Pneumatix installations and the product configurations selected for real workshop and commercial applications.
Malwa Motor Group
Pneumatix PM10 Total Air Station supporting the workshop at Malwa Motor Group in Melton, Victoria.
Saggu Motor Works
Pneumatix PM10 Total Air Station supporting the workshop at Saggu Motor Works in Melton, Victoria.
Alba Thermal Springs & Spa
Pneumatix PM10 Total Air Station in service at Alba Thermal Springs & Spa in Fingal, on the Mornington Peninsula, Victoria.
Not sure which compressor or dryer suits the application?
Pneumatix can help review the application, compare equipment options and connect you with an appropriate dealer or distribution partner where required.
Compressed air for real workshop and industrial applications
The right model depends on what uses air, how many users operate together, the required pressure, storage, air quality, electrical capacity and future growth. We work through that with you by application.
