PM30 SERIES | BASE MOUNT

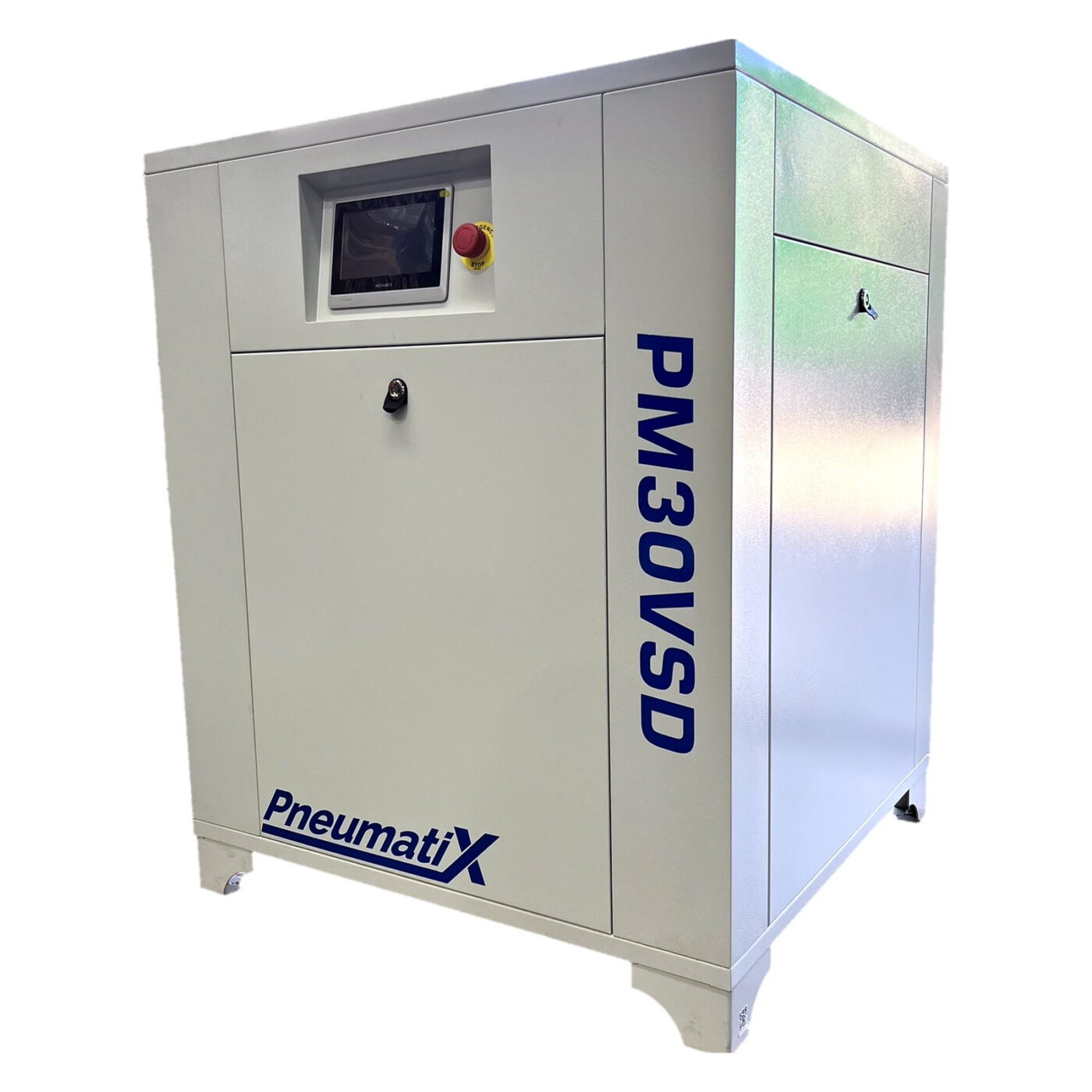

PM30 Base Mount
Technical model PM30VSD
The highest-output compressor in the Pneumatix compressor range, delivering 3,200 L/min at 8 bar in a compressor-only Base Mount.
Recommended Retail Price
$10,199 inc GST, excludes delivery
Available through Pneumatix dealer and distribution partners. Supplier pricing and availability may vary.
Core specifications
- Motor power
- 22 kW / 30 HP
- FAD at 8 bar
- 3,200 L/min (113 CFM) at 8 bar
- Maximum pressure
- 10 bar / 145 PSI
- Configuration
- Base Mount
Product overview
The PM30 is available only as a Base Mount. At this output level, the receiver, refrigerated dryer and filtration are selected separately to suit the complete system.
It is intended for larger workshop and industrial applications where the PM20 output level is insufficient and the site can support the required electrical supply, storage, treatment, ventilation and distribution system.
Why choose this model
- 22 kW / 30 HP
- 3,200 L/min at 8 bar
- largest output level in the current range
- flexible receiver and treatment selection
- suitable starting point for larger compressed-air systems
The PM30 is supplied as a compressor only, so the receiver, dryer and filtration are specified separately. See air treatment for the dryer and filter range, or the PM20 Total Air Station if an integrated package suits the site better. The comparison table covers all five models.
Included and not included
Included as standard
- PM30 variable-speed rotary screw compressor
- Digital compressor controller
Not included as standard
- air receiver
- refrigerated air dryer
- inline filtration
- distribution pipework
Key technical data
Only verified values are published. Where a specification is still being confirmed, the row is omitted rather than estimated.
| Technical model | PM30VSD |
|---|---|
| Configuration | Base Mount |
| Motor power (kW) | 22 kW |
| Motor power (HP) | 30 HP |
| Free air delivery | 3,200 L/min (113 CFM) at 8 bar |
| Maximum operating pressure | 10 bar / 145 PSI |
| Electrical supply | 3-phase / 415 V |
| Speed range | 1,400-3,500 RPM |
| Outlet size | 1 inch |
| Noise level | 70 dB(A) |
| IP rating | IP23 |
| Drive method | Direct drive, integrated |
| Air receiver | Not included |
| Refrigerated dryer | Not included |
| Inline filtration | Not included |
| Air/oil separator volume | 17 L |
| Separator design standard | AS 1210-2010 |
| Separator hazard level | D |
| Separator registration | WSV-0151461936 |
| Dimensions (L x W x H) | 920 x 900 x 1,145 mm |
| Net weight | 250 kg |
| Shipping dimensions (L x W x H) | 970 x 950 x 1,255 mm |
| Shipping weight | 260 kg |
Best suited to
- Larger automotive facilities
- Fabrication and engineering sites
- CNC and manufacturing environments
- Other industrial processes with sustained or simultaneous air demand
Installation planning
Assess the PM30 as part of the complete system. Confirm electrical capacity, receiver storage, dryer sizing, filtration, ventilation, condensate management, pipework and service access together.
Downloads
-
PM30 Base Mount Product Specifications
Download PM30 Base Mount Product Specifications (PDF, 689 KB)
Serviceability and support
Major packaged assemblies can be replaced as complete sections where applicable, helping suitably qualified technicians carry out significant service or replacement work more practically.
Plan the rest of the system
Product FAQ
What airflow does PM30 deliver?
3,200 L/min at 8 bar.
Is PM30 available on a receiver?
No. The current PM30 is Base Mount only.
Does it include a dryer or filters?
No. Treatment and storage are selected separately.
Next steps
Planning a PM30 system? Work with your preferred Pneumatix dealer, or ask Pneumatix to help assess the compressor requirement and overall system arrangement.
